Product description

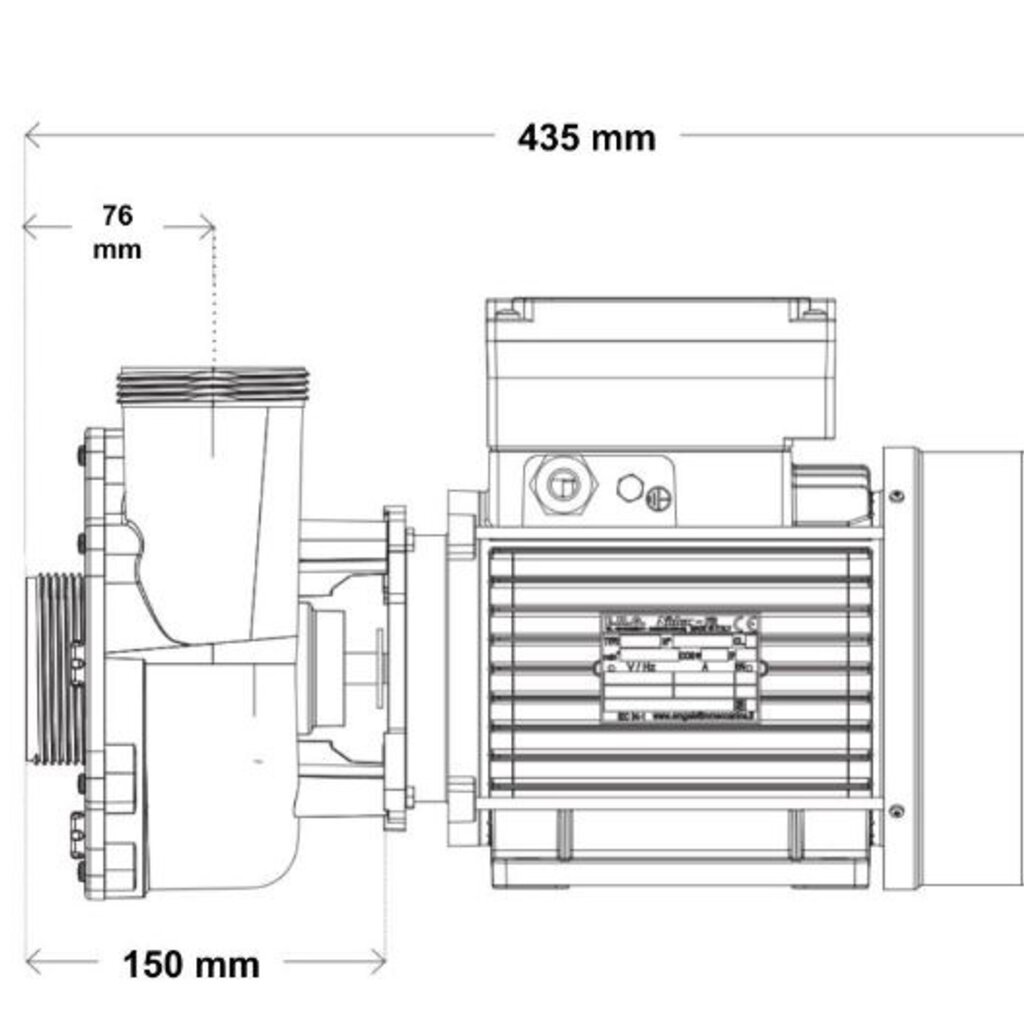

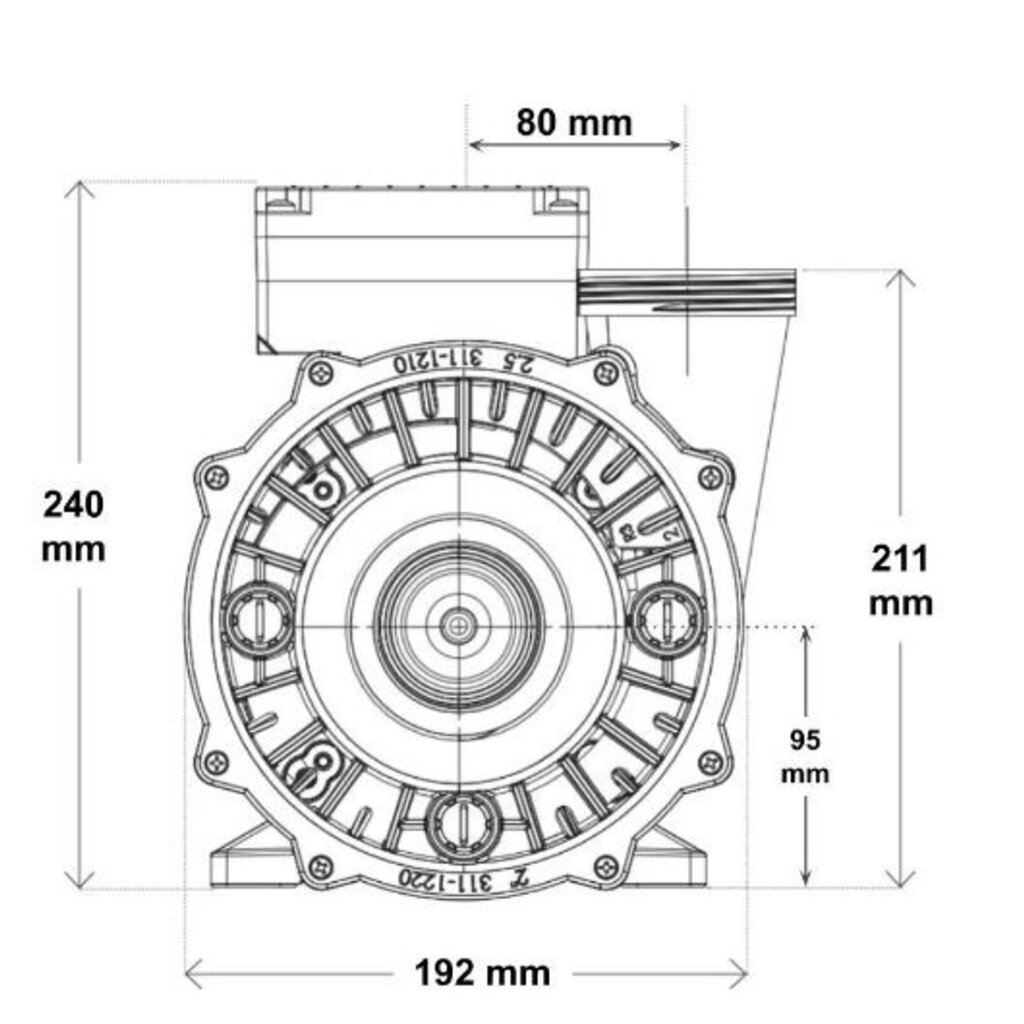

Dimensions
Length: 435mm
Width: 210mm
Height: 240mm

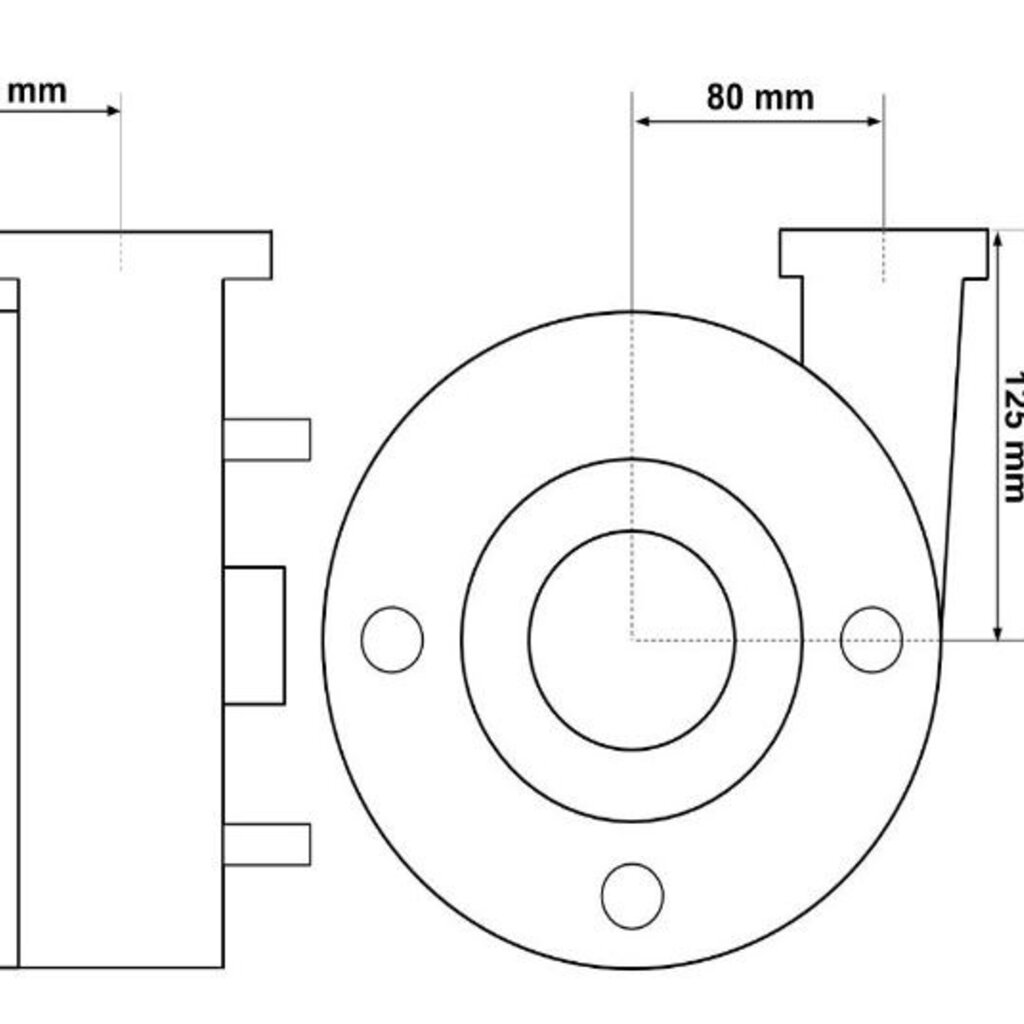

Center distances: see diagram
Technical features
This Waterway Executive Europomp is available in three versions:
- Power 2 kW (0.36 kW at low speed) / Current 8.6 A (1.6 A)
- Power 2.4 kW (0.43 kW at low speed) / Current 10.8 A (2 A)
- Power 2.7 kW (0.55 kW at low speed) / Current 12.5 A (2.5 A)
Connections
Drain: male thread with an outer diameter of 78 mm
Suction: male thread with a diameter of 78 mm or 94 mm This pump is normally connected to 2 inches
pipes .
Cable and plug
The Waterway Executive pump is supplied without a plug or cable. If it is in good condition, you can keep the wiring from your old pump. You will find a wiring diagram on the back of the junction box cover.
You can also choose to have us pre-wire the pump with an AMP connection or a J&J type 1 mini connection.
An in.link connection (length 100 cm) is also available, but we recommend that you reuse your old cable if it is in good condition. Indeed, your pump can be defective for many reasons, but the power cable is rarely the cause.
