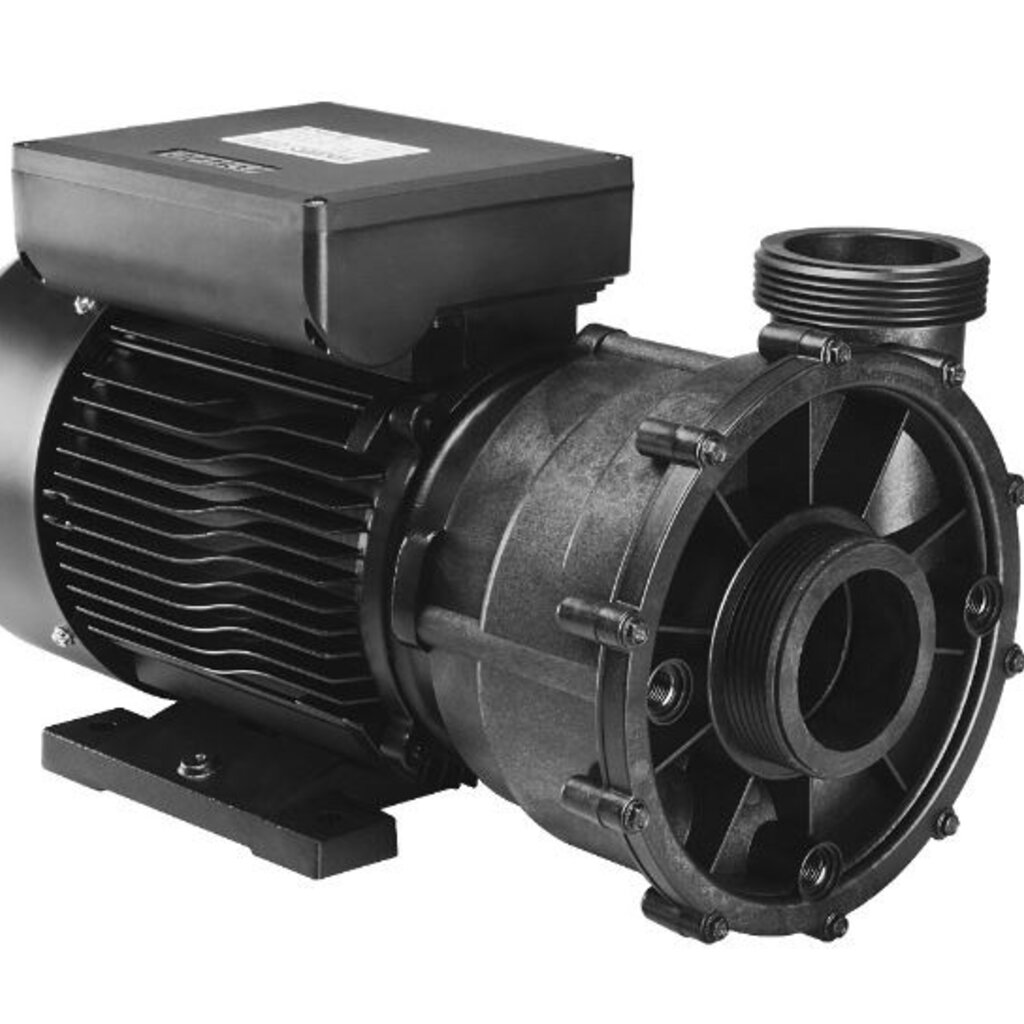

Product description

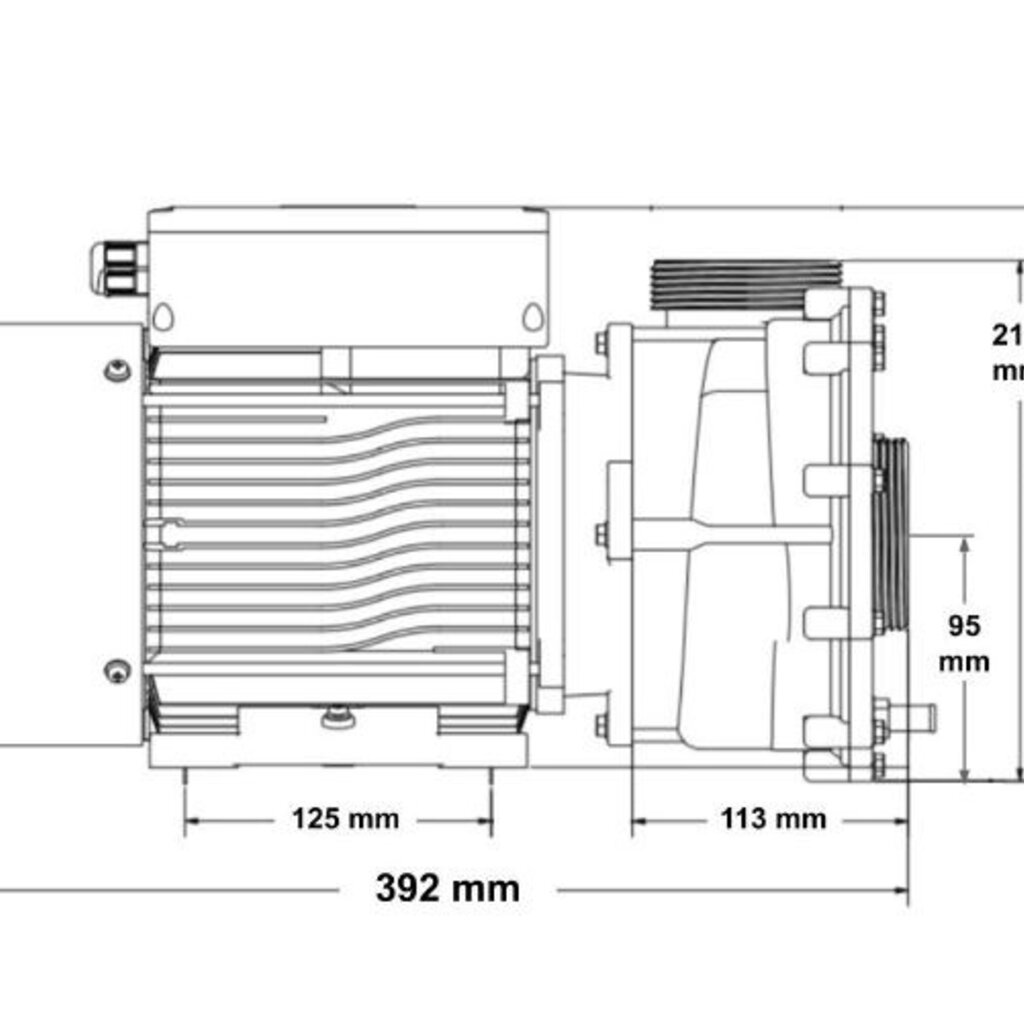

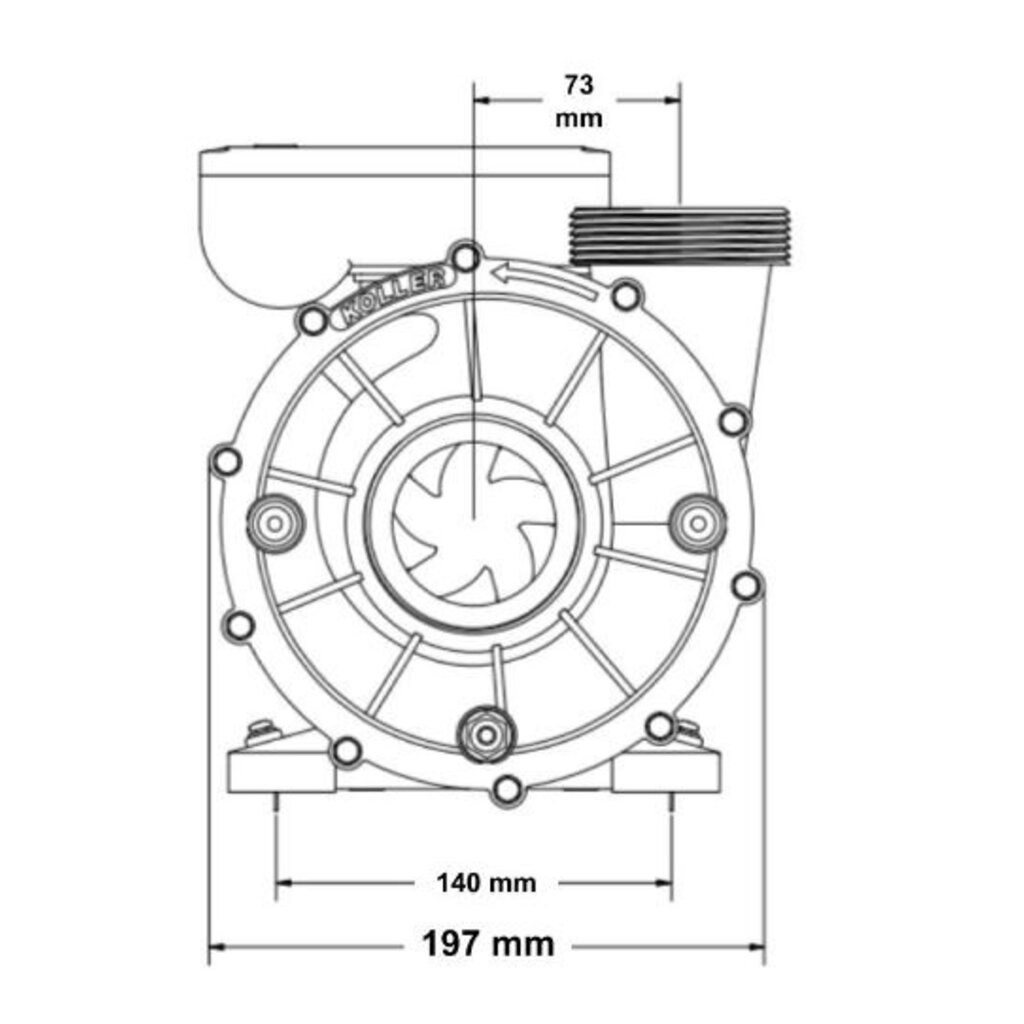

Dimensions
Length: 392mm
Width: 197mm
Height: 238mm
Technical features
Power: 2.2 kW (3 hp)

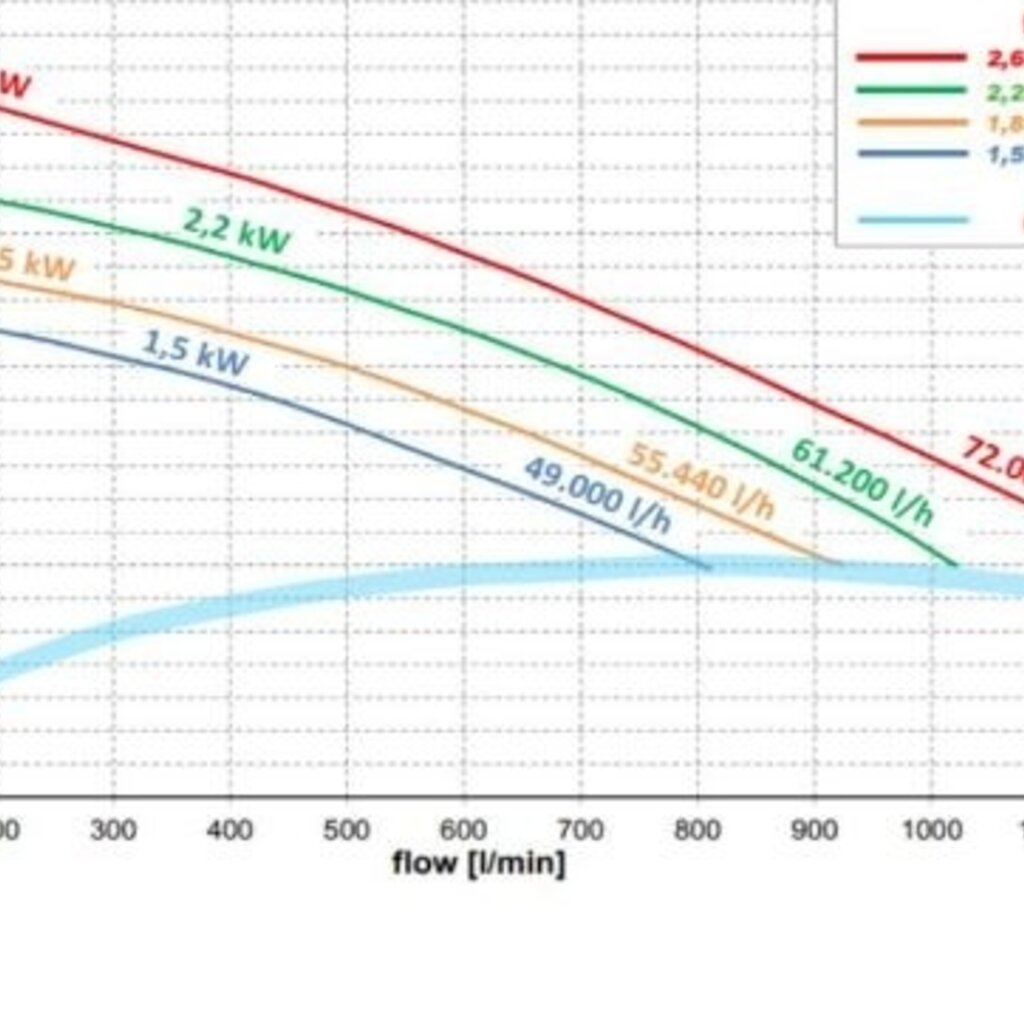

Maximum flow: 1020 liters/minute
Koller pumps are supplied with automatically closed drain plug locations. To create a drain point on the pump flange, it is necessary to drill one of the slots and purchase a drain plug separately.
Connections
Discharge and suction: threaded male end with an outer diameter of 78 mm (2 inch MBT type).
The Koller pump is normally connected to a 2 inch pipe. Other sizes are also available.

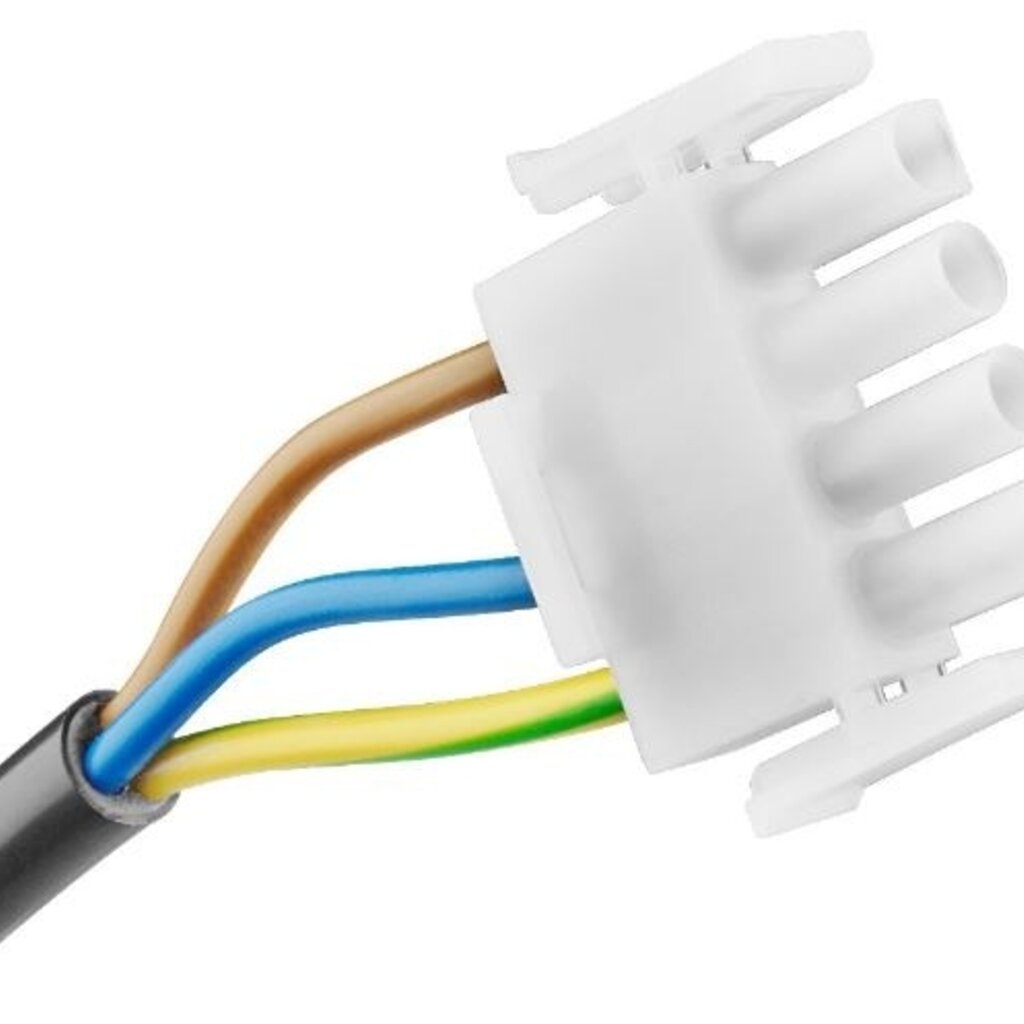

Cable and plug
The Koller 3 HP single speed pump is available pre-wired with an AMP plug (length 3 m). You can also choose to have us pre-wire the pump with a J&J mini plug.
An in.link connection is also available, but we recommend reusing your old cable if it is in good condition. Indeed, your pump can be defective for many reasons, but the power cable is rarely the cause.
Similar pump
The LX Whirlpool LP300 pump has identical motor power and pitch as the Koller 3 HP single-speed, as well as approximately similar dimensions. Be careful when replacing a pump with another model. Carefully check the dimensions of your pump's suction and discharge centers, as well as their size, as pipe connection adjustments may be necessary.
