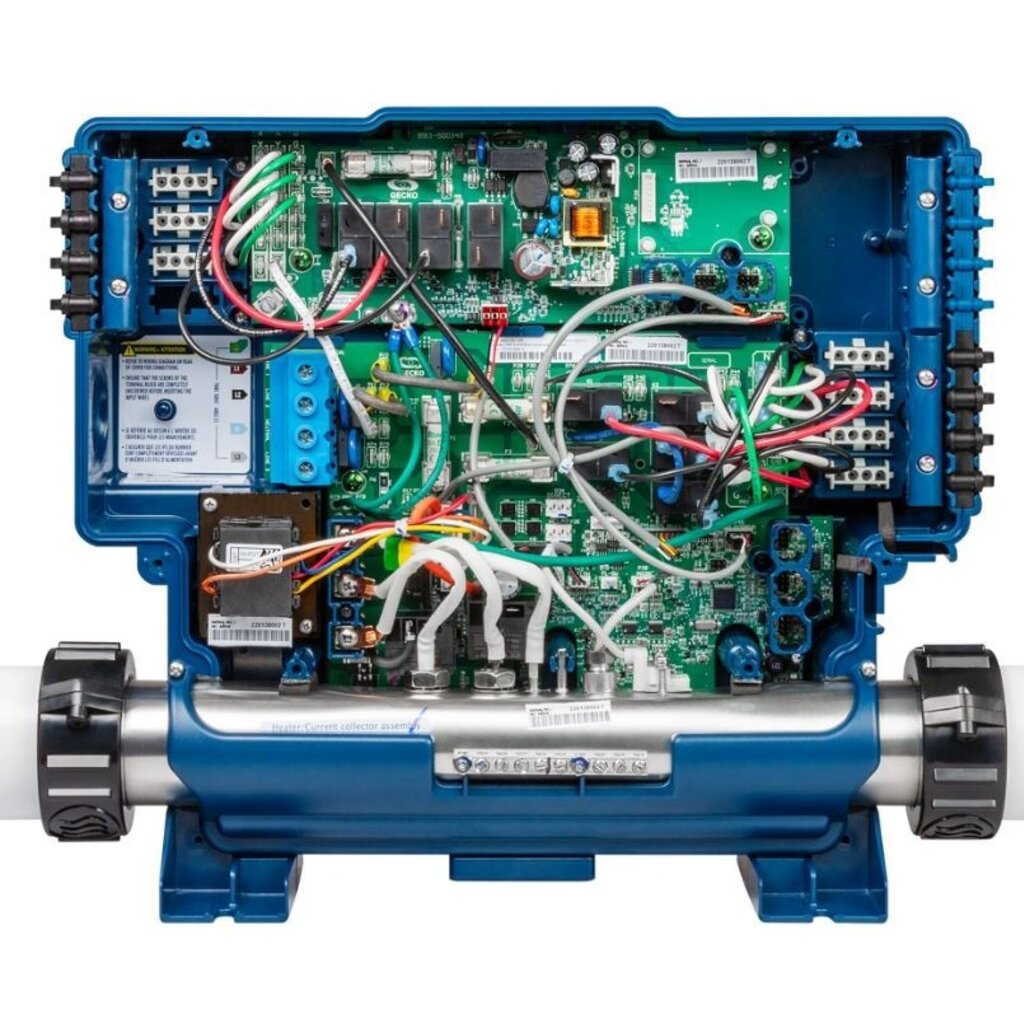

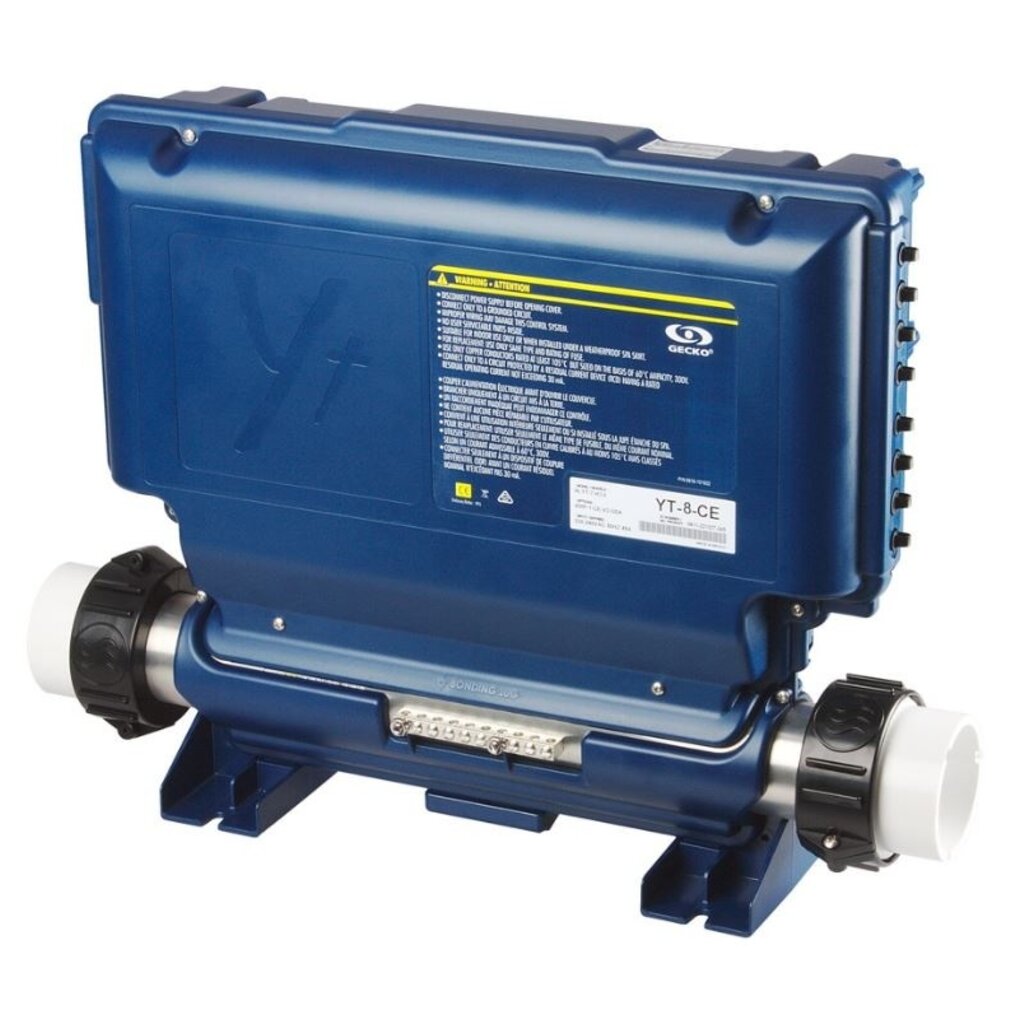

Product description
This operating system can manage the following components:
- 3 dual-speed pumps, or 1 dual-speed pump and 4 single-speed pumps, or 5 single-speed pumps
- a circulation pump
- an in.temp heat pump
- a blower
- an ozonator
- a lighting system
- an audio system
This system is commonly found in swim spas.
Configuration of the spa pack in.yt-8 is done via the keyboard by choosing one of the pre-recorded options. For questions about configurations, please refer to the Getting Started guide.
Dimensions
Cabinet width: 422 mm
Maximum width with connections: 498 mm
Height: 368mm
Depth: 120 mm
Heater connection: 2 inches (clamping rings and gaskets included)
Display
in.k200, in.k300, in.k336, in.k8, in.k35, in.k450, in.k500, in.k600 (only in simple interface), in.k800, in.k1000, in.k1001
Technical features
Power supply: 230V 50Hz, with possibility of distribution over three phases
8 230V AC outputs on 4-pole
AMP connections 1 12V AC output for 3-pin connector
3 outputs for in.link connections: 1 main keyboard connector and 2 communication port connectors (in.stik, in.terface, in.touch2, in.clear, in.grid and in.stream2)
