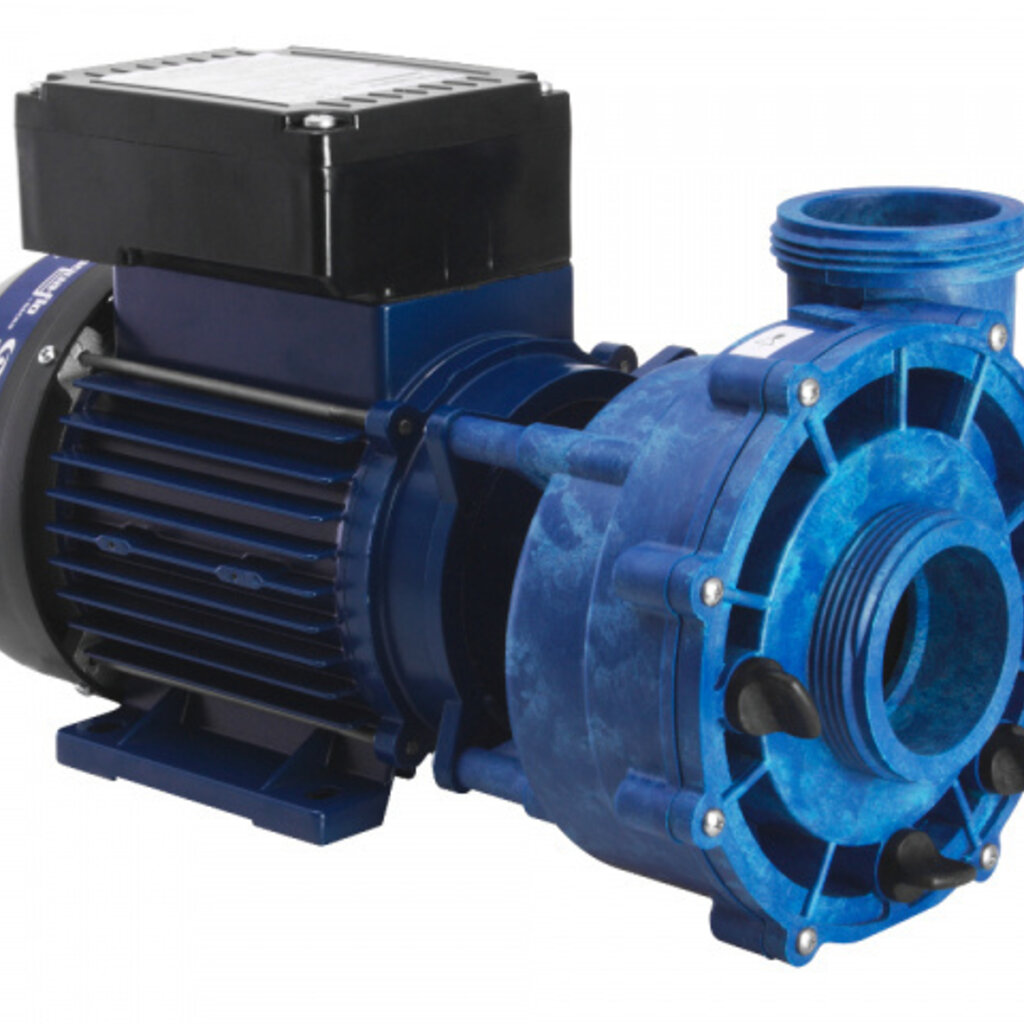

Product description
The Aqua-Flo Flo-Master XP2e single-speed massage pump, also sold under the Gecko brand, has almost the same dimensions as its sister model, the XP2.
This is a 2.2 kW pump and is called 3 HP by the manufacturer. Aqua-Flo has discontinued production of the 1.5 HP, 2 HP and 2.5 HP versions of this pump. They are being replaced by the 2HP and 2.5HP versions of the XP2 pump.
These pumps are also a perfect replacement for Theramax pumps.
We also offer the Aqua-Flo Flo-Master XP2e in a two-speed version.

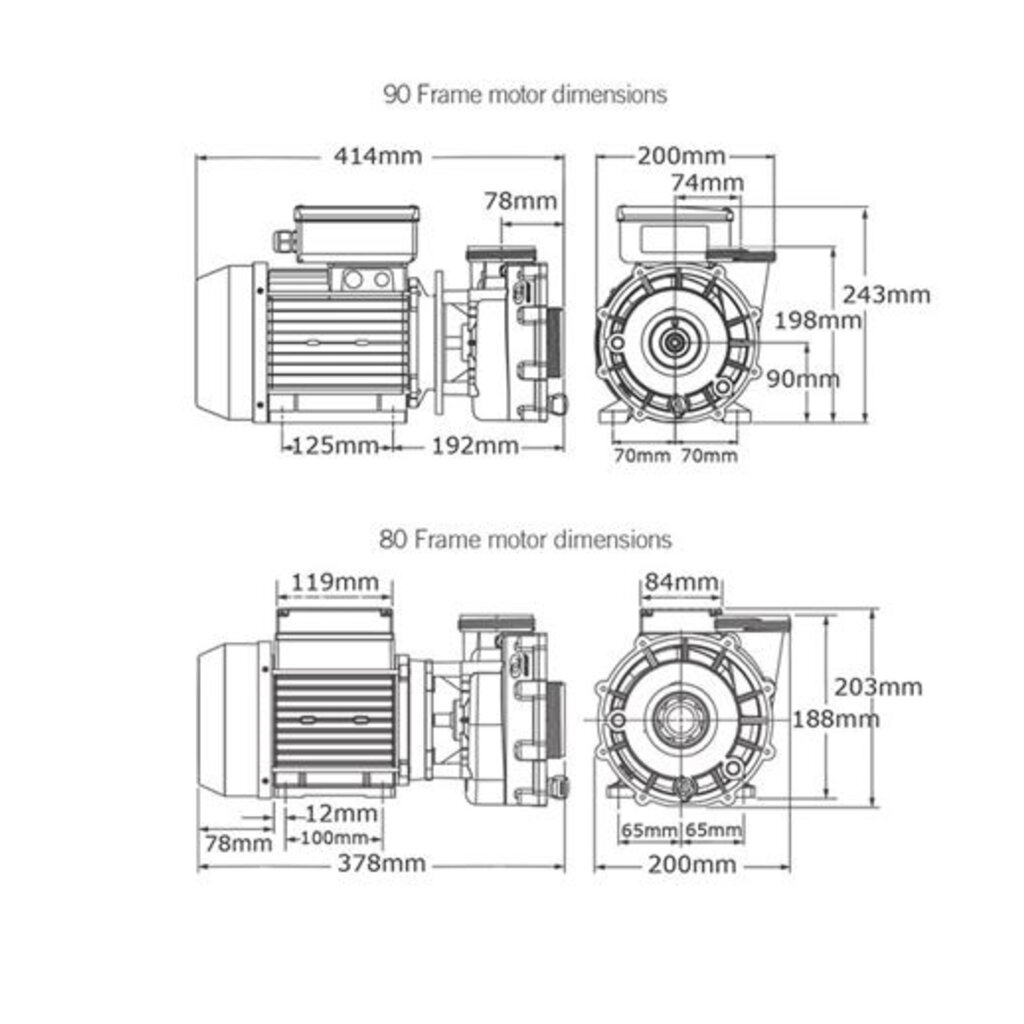

Dimensions
Length: 380mm
Width: 190mm
Height: 230mm
Technical features
Power supply: 220-240V, 50 Hz
Power: 2.2 kW (called 3HP by the manufacturer)
Current: 11.8 A
Connections
Discharge and suction: threaded male end (type 2 inch MBT) with an outer diameter of 78 mm.
This pump is connected to 2 inch pipes. You can also choose couplings for 1.5 inch or 63 mm tubes
Cable and plug
The Aqua-Flo Flo-Master XP2e pump is supplied without a plug or cable. If it is in good condition, you can keep the wiring from your old pump. You will find a wiring diagram on the back of the junction box cover.
You can also choose to have us pre-wire it with an AMP connection or a J&J mini connection.
An in.link connection (length 220 cm) is also available, but we recommend that you reuse your old cable if it is in good condition. Indeed, your pump can be defective for many reasons, but the power cable is rarely the cause.
References Gecko
2.2 kW (3 hp): 05253000-6040
1.8 kW (2.5 hp): 07044000-6040
1.5 kW (2 hp): 07030003-6040
The XP2e replaces many older models, including several models of Theramax pumps.
