Product description

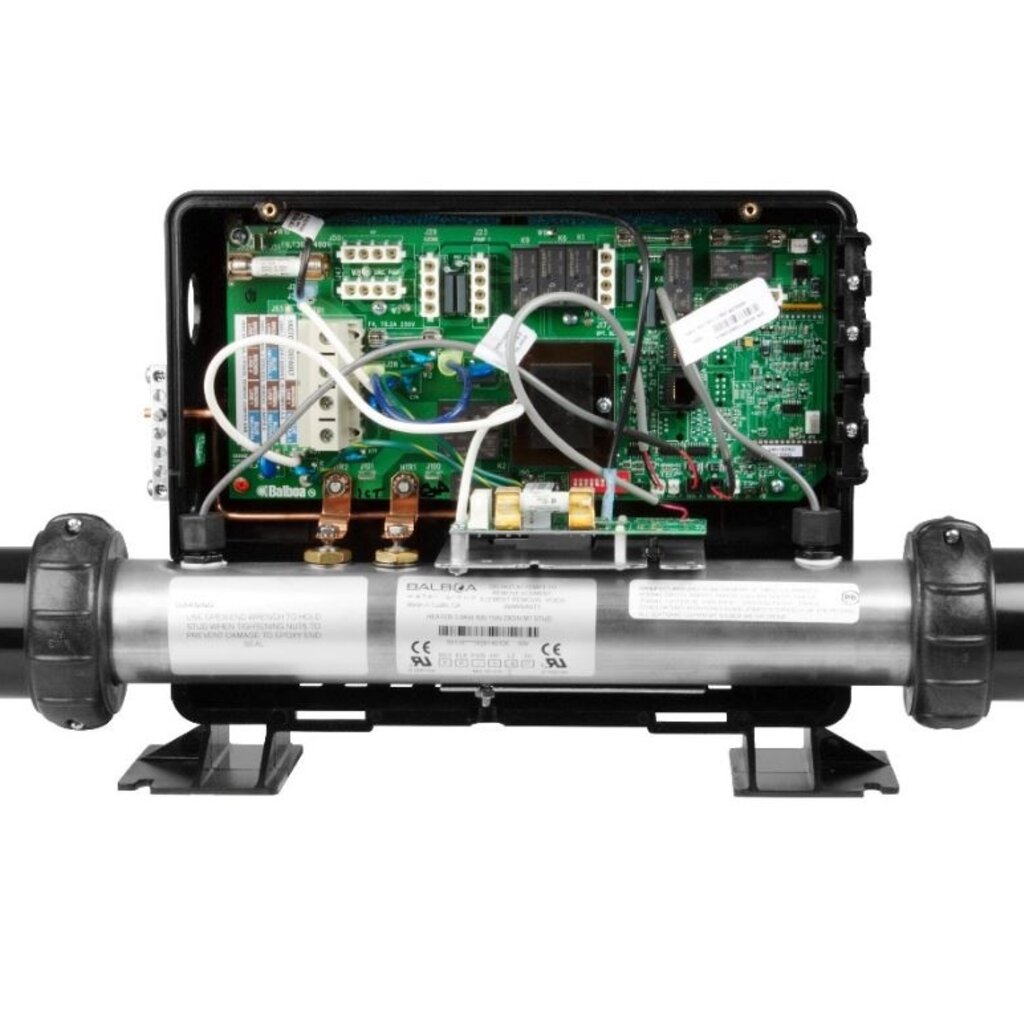

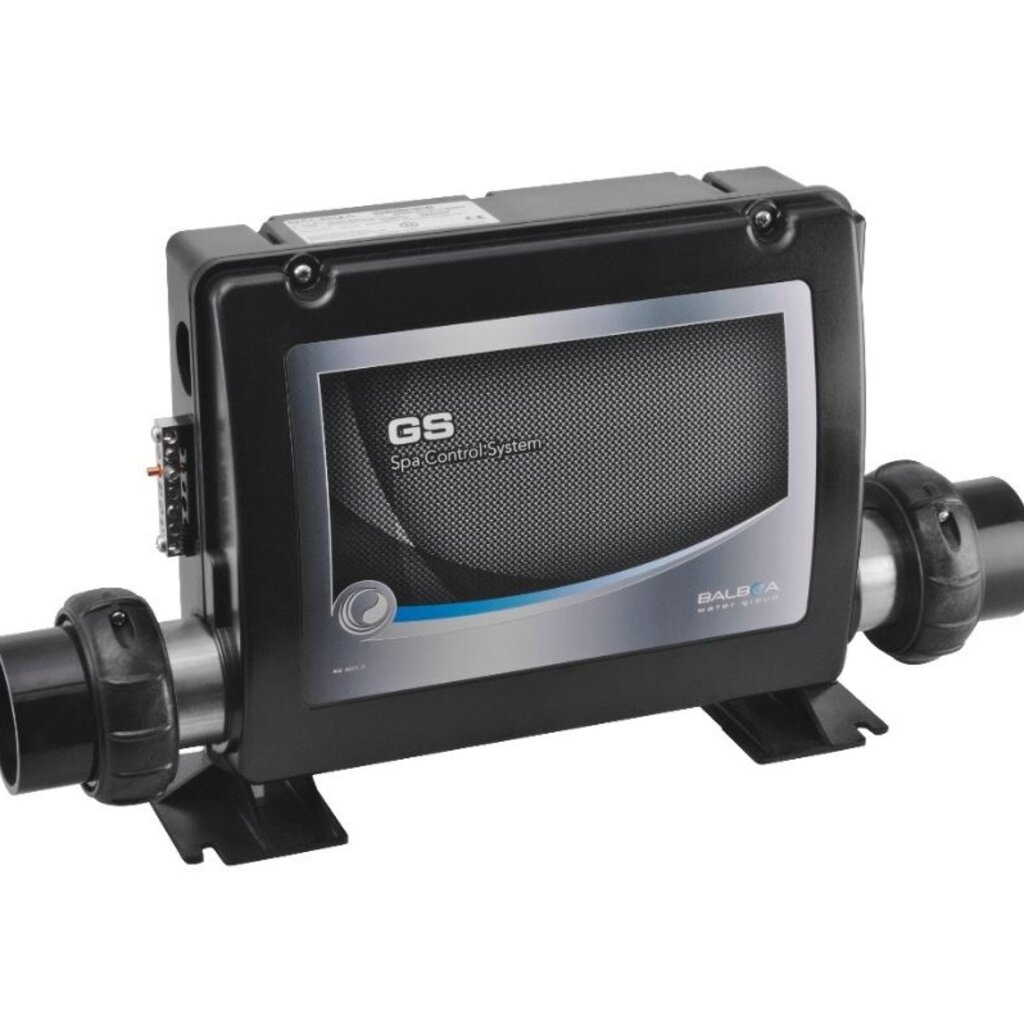

The Balboa GS514SZ control system, with integrated 3 kW heating, can manage:
- Pump 1 single or two speeds
- Single speed pump 2
- Single speed pump 3 (for a fan instead of a 3rd pump, use the GS510SZ )
- Circulation pump
- 1 heating element of 3 kW
- 1 ozonizer
- 1 projector
This control box is equipped with M7 technology, which uses temperature probes at the inlet and outlet of the heater to measure water flow, making it much more reliable than systems equipped with a pressure switch or a traditional flow detector.
Use AMP connections to connect any device (pump, ozonator, projector, etc.) to the box.
Dimensions
Height: 268mm
Width: 311 mm (housing without heating), 381 mm (heating without connections)
Depth: 112mm
Heating connection: 2 inches (clamps and gaskets included)
Display
VL600S, VL700S, VL701S, VL702S
Power supply
The GS514SZ system is supplied pre-configured as single-phase, but can also be configured as two-phase and three-phase (for the distribution of the different devices over the phases).
