Product description

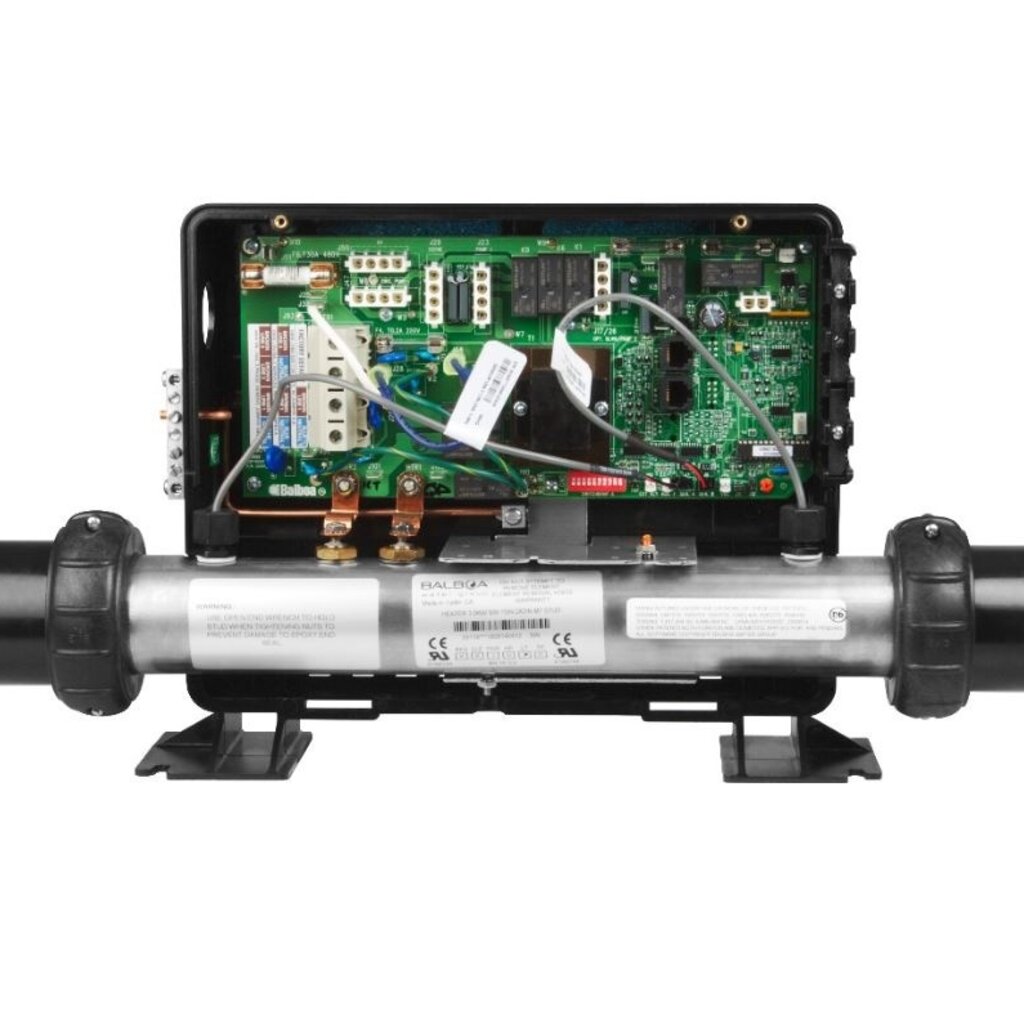

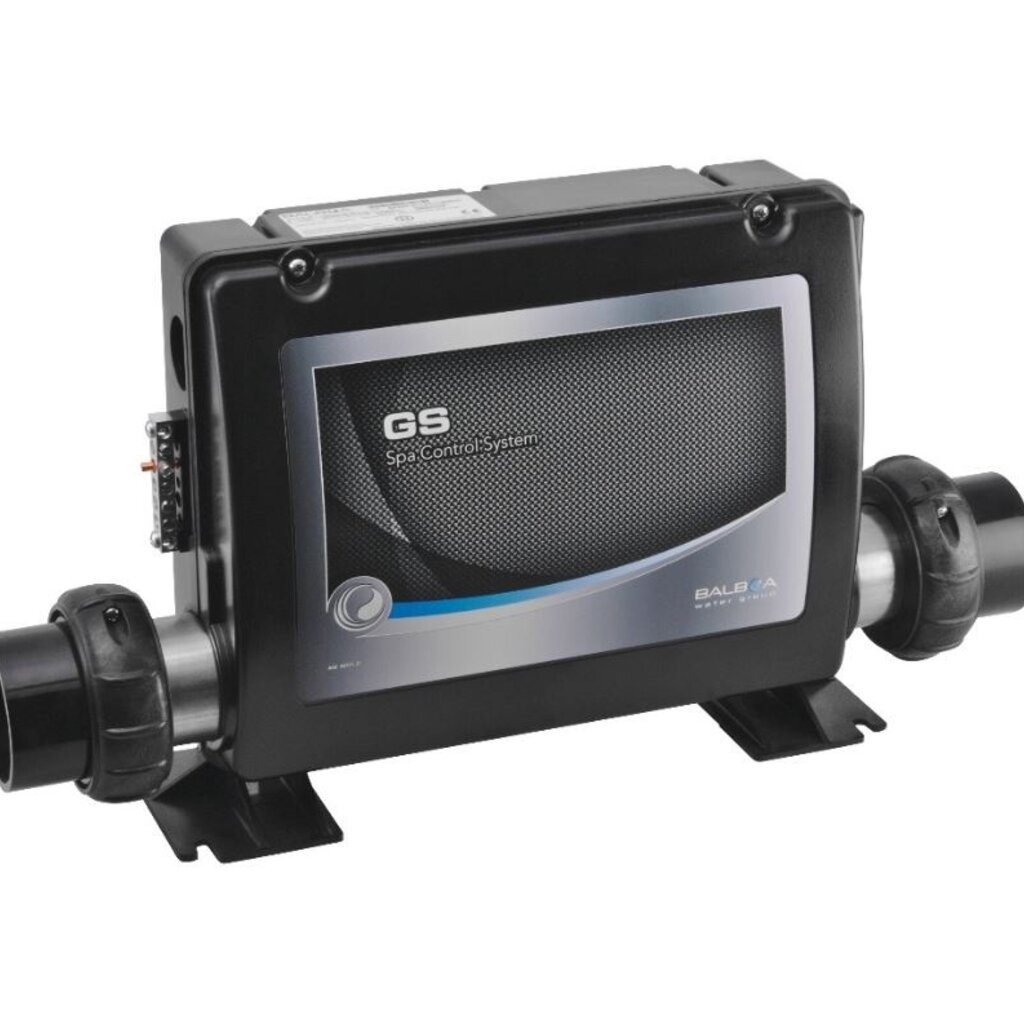

The Balboa GS501SZ control system with integrated 3 kW heater can manage:
- Pump 1 single or two speeds
- Circulation pump
- 1 fan (for a 2nd single-speed pump instead of the fan, use the GS504SZ)
- 1 ozonizer
- 1 projector
- 1 audio system
This control box is equipped with M7 technology, which uses temperature probes at the inlet and outlet of the heater to measure water flow, making it much more reliable than systems equipped with a pressure switch or a traditional flow detector.
Use AMP connections to connect any device (pump, fan, ozonator, projector, etc.) to the box.
Dimensions
Height: 268mm
Width: 311 mm (housing without heating), 381 mm (heating without connections)
Depth: 117mm
Heating connection: 2 inches (clamps and gaskets included)
Display
VL600S, VL601S, VL700S, VL701S, 702S
