Product description

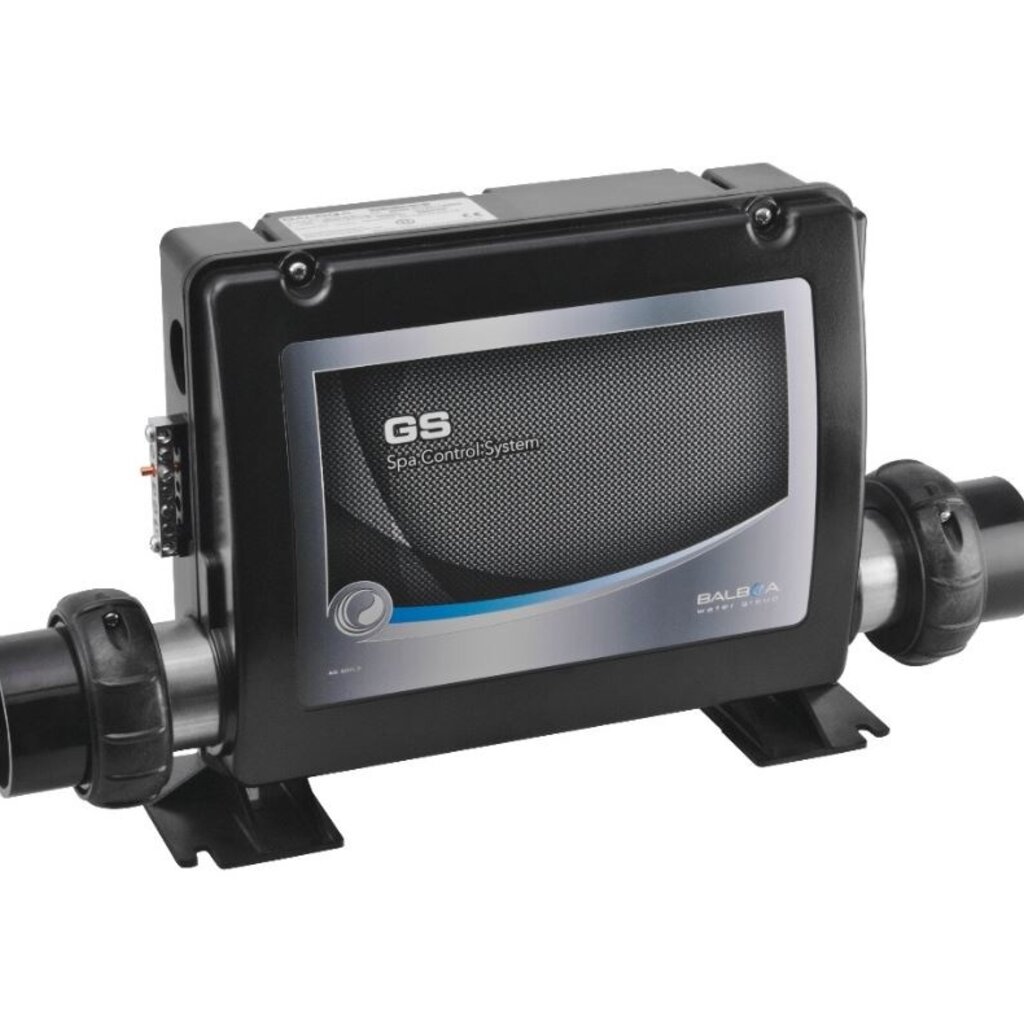

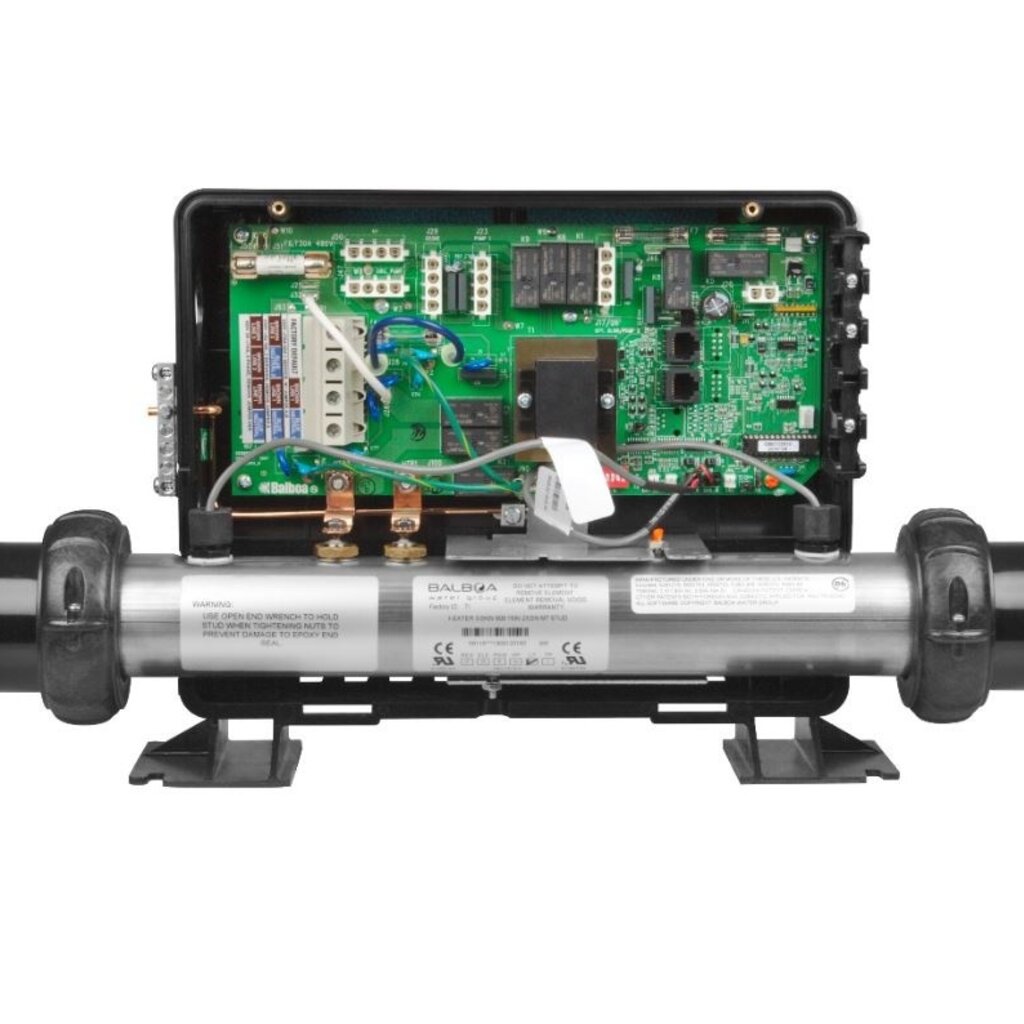

The Balboa GS501DZ control system with integrated heating of 3 kW can manage the following equipment:
- Pump 1 single or two speeds
- Blower (for a 2nd single-speed pump instead of the blower, use the GS504DZ)
- Circulation pump
- 1 ozonizer
- 1 projector
This control box is equipped with M7 technology, which uses temperature probes at the inlet and outlet of the heater to measure water flow, making it much more reliable than systems equipped with a pressure switch or a traditional flow detector.
Dimensions
Height: 268mm
Housing width: 311 mm
Heater width: 381 mm, without connections
Depth: 112mm
Heating connection: 2 inches (clamp ring and gaskets included)
Display
Main keyboards, with screen: VL801D, VL802D
Auxiliary keyboards: VX40D
Power supply
The GS501DZ system is supplied pre-configured as single-phase, but can also be configured as two-phase and three-phase (for the distribution of the different devices over the phases).
