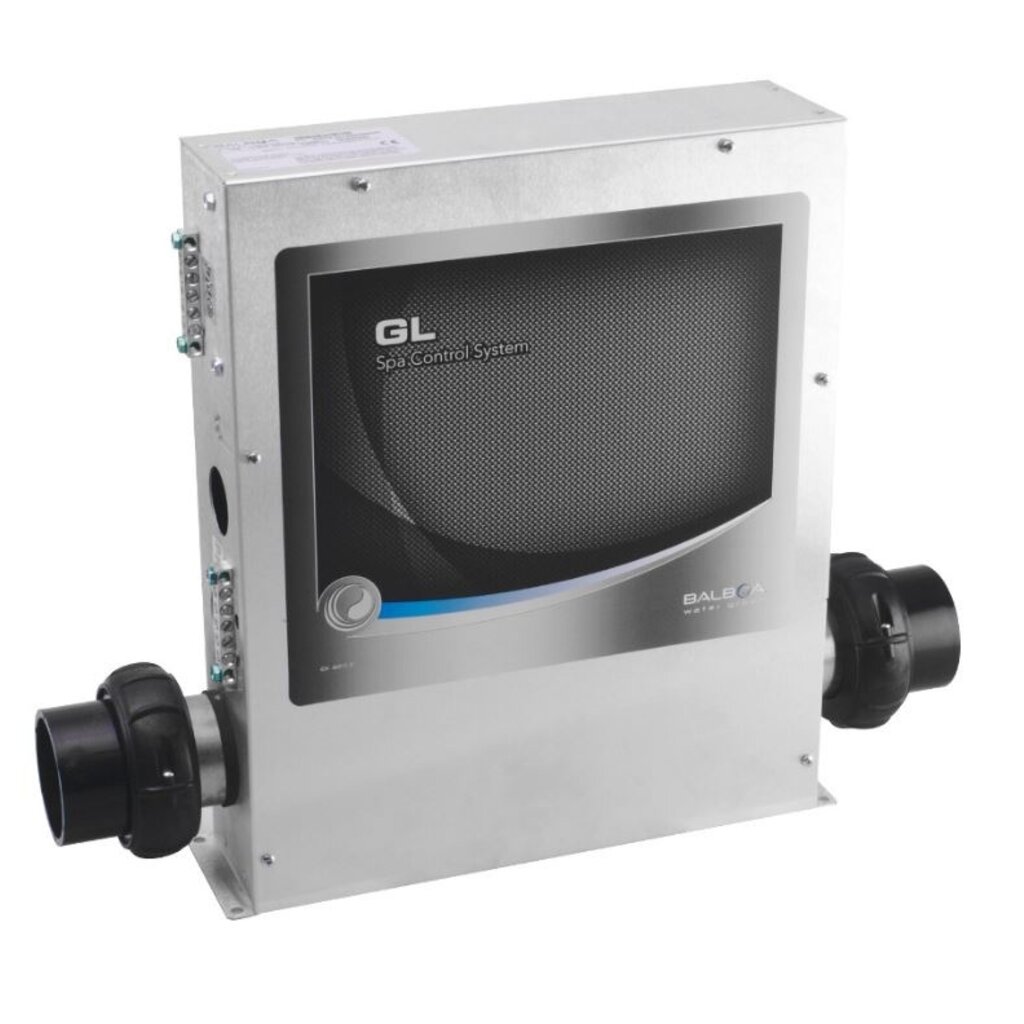

Product description
The GL84P control system, with its integrated 3 kW heater, is the most powerful version of Balboa's GL series. It is particularly recommended for swim spas and can manage a large number of massage pumps, up to:
- 2 dual-speed pumps + 2 single-speed pumps + 1 circulation pump
- An ozonizer
- A projector
- An audio system

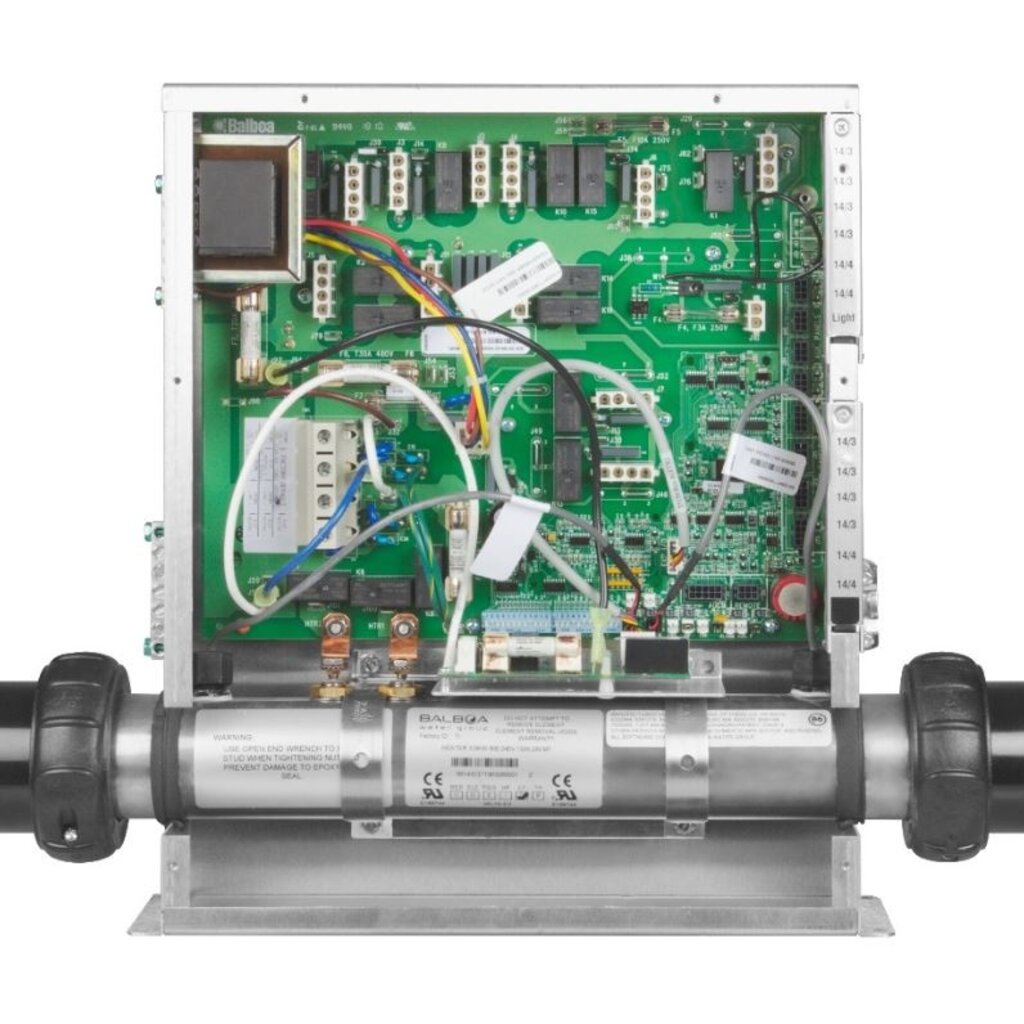

This control box is equipped with M7 technology, which uses temperature probes at the inlet and outlet of the heater to measure water flow, making it much more reliable than systems equipped with a pressure switch or a traditional flow detector.
Use AMP connections to connect any device (pump, ozonator, projector, etc.) to the box.
Dimensions
Height: 385mm
Width: 311 mm (housing, without heating), 381 mm (heating, without connections)
Depth: 90 mm
Heating connection: 2 inches (clamps and gaskets included)
Display
ML900, ML700, ML554, ML551
Power supply
The GL84P system is supplied pre-configured as single-phase, but can also be configured as two-phase and three-phase (for distribution of the different devices over the phases).
