Product description

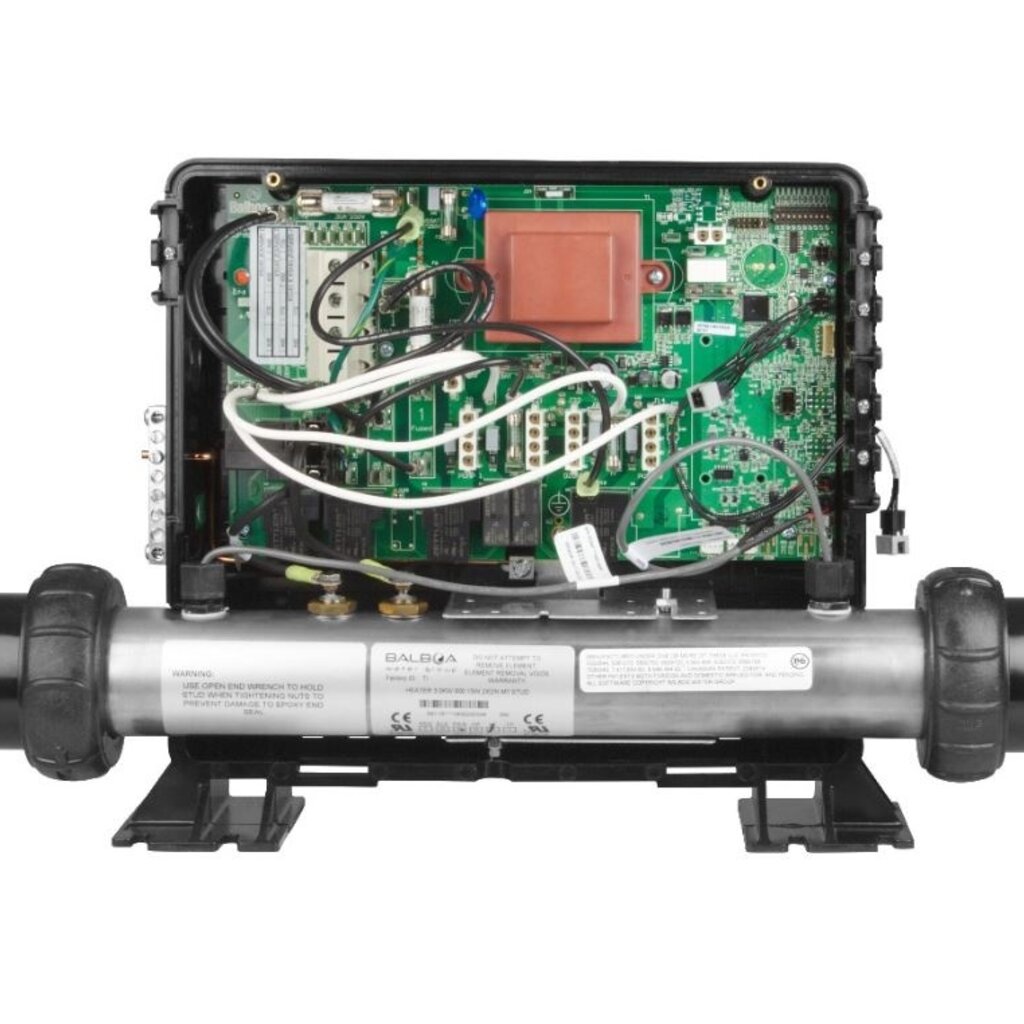

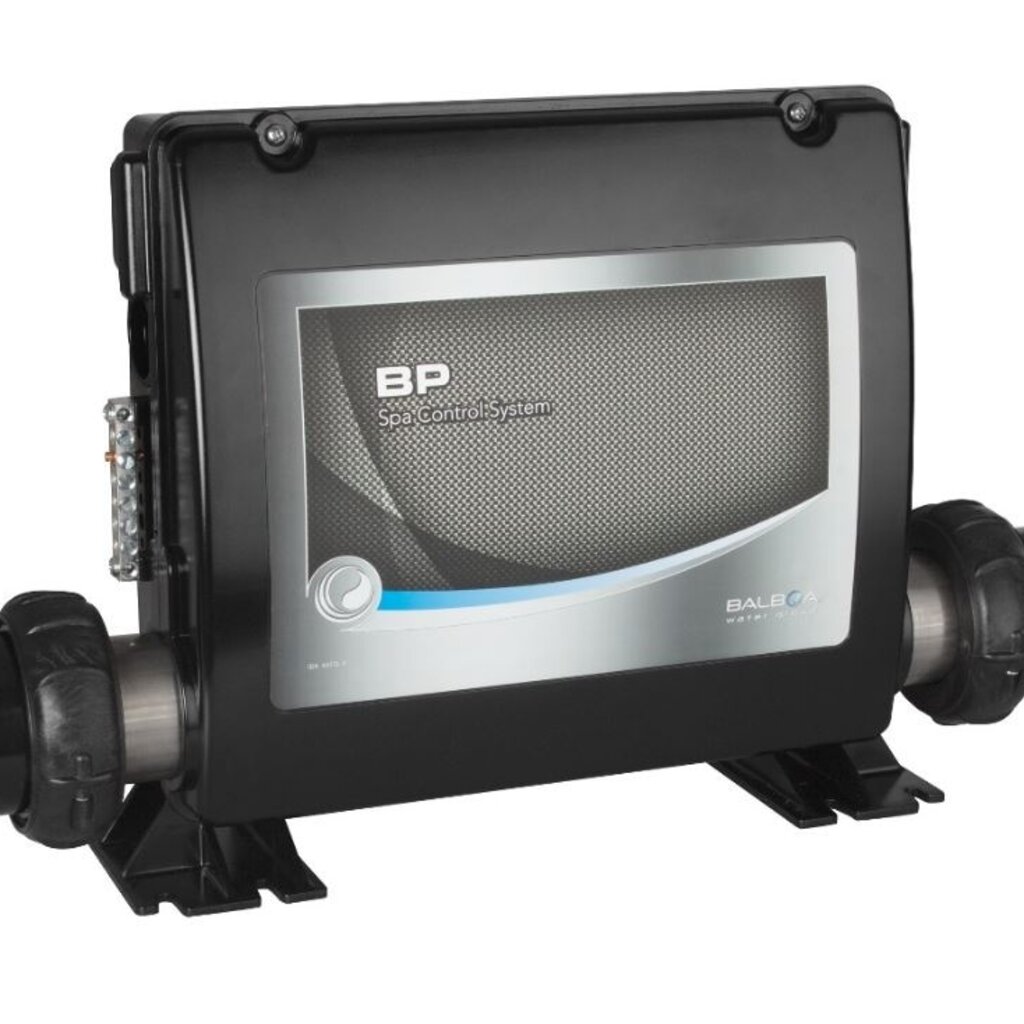

The Balboa BP6013G1 control system, with integrated 3 kW Incoloy heating, can manage:
- Circulation pump
- Massage pump with one or two speeds
- Another single speed pump or blower
- Ozonator
- Projector
This control box connects to a WiFi module, allowing you to control your spa remotely from an Android smartphone or an iPhone, iPod touch or iPad.
Dimensions
Height: 300mm
Heater width (without fittings): 380 mm
Heater width (with fittings): 498 mm
Housing depth: 108 mm
Heater connection: 2 inches (clamps and gaskets included)
Display
Main keyboards: TP400W, TP400T, TP500, TP600, TP700, TP800 and TP900, spaTouch rectangular, oval, spaTouch 2, spaTouch 3 and spaTouch 3+
Additional keyboards (without screen): AX10, AX20, AX40
Power supply
The BP6013G1 system is supplied pre-configured as single-phase, but can also be configured as two-phase and three-phase (for distribution of the different devices over the phases).
