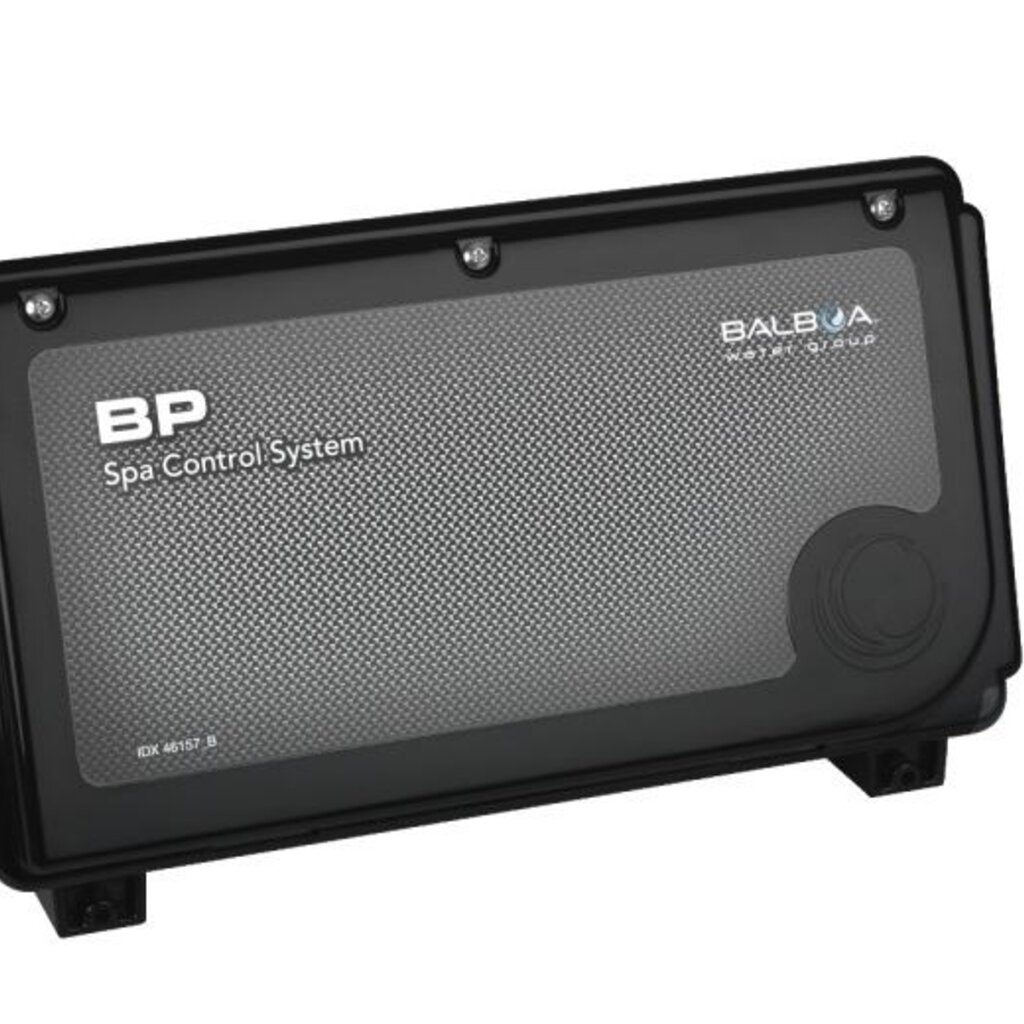

Product description
This control system is supplied without heating.
The BP200UX system can manage the following components:
- Heating
- Circulation pump and a 1-speed pump or a 2-speed pump
- An ozonator
- Lighting (projector) max 1A
- Audio system
This controlsystem has the option to be connected to a WiFi module.
Dimensions
Height: 221mm
Width: 321mm
Depth: 161mm
Display
TP200T, TP200W, TP260T, TP260W, TP400W, TP400T, TP500, TP600, TP800, TP900
touchscreens spaTouch rectangular, oval, trapezoidal version 2, spaTouch 3 and spaTouch3+
It can also be managed remotely with your smartphone thanks to the addition of a WiFi module.
The BP200 UX is not compatible with additional keyboards that do not have a screen.
Power supply
The BP200UX system is supplied pre-configured as single-phase, but can also be configured as two-phase and three-phase (for the distribution of the different devices over the phases).
