Product description

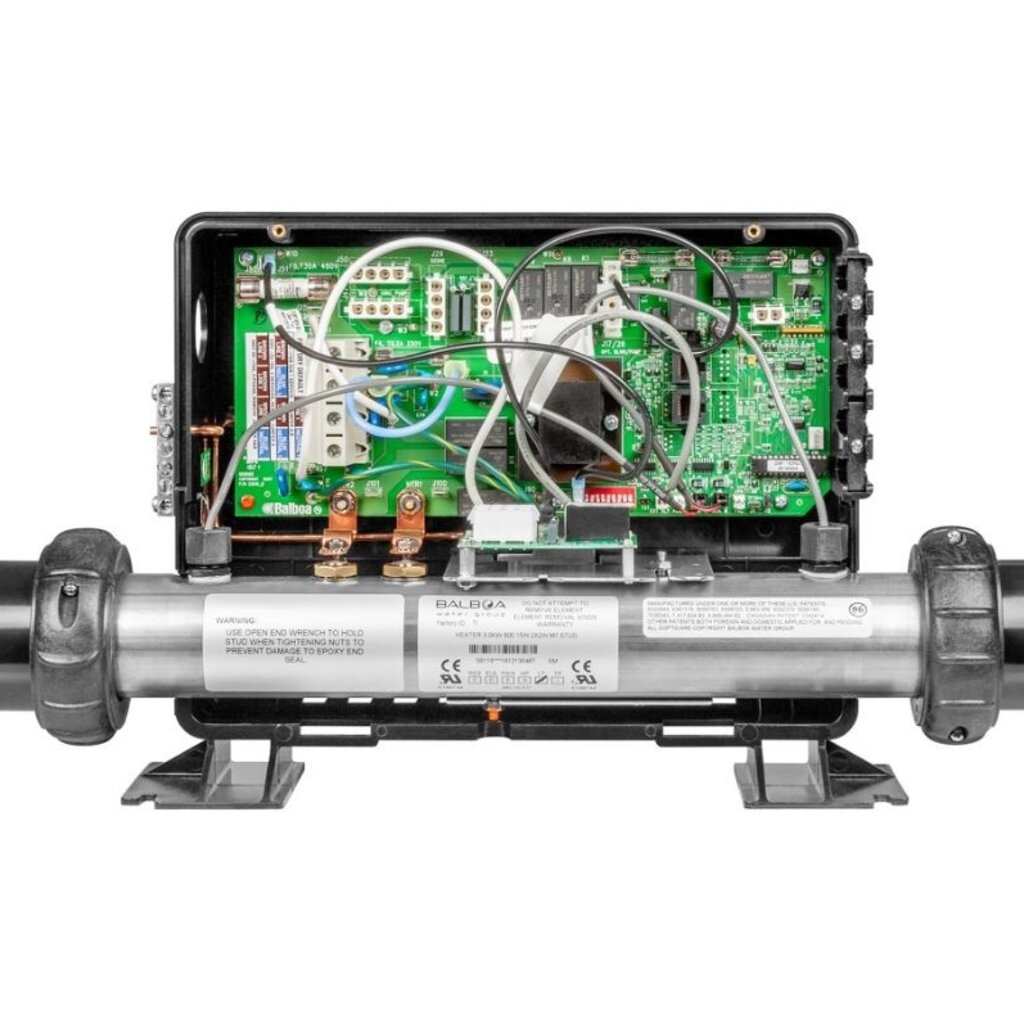

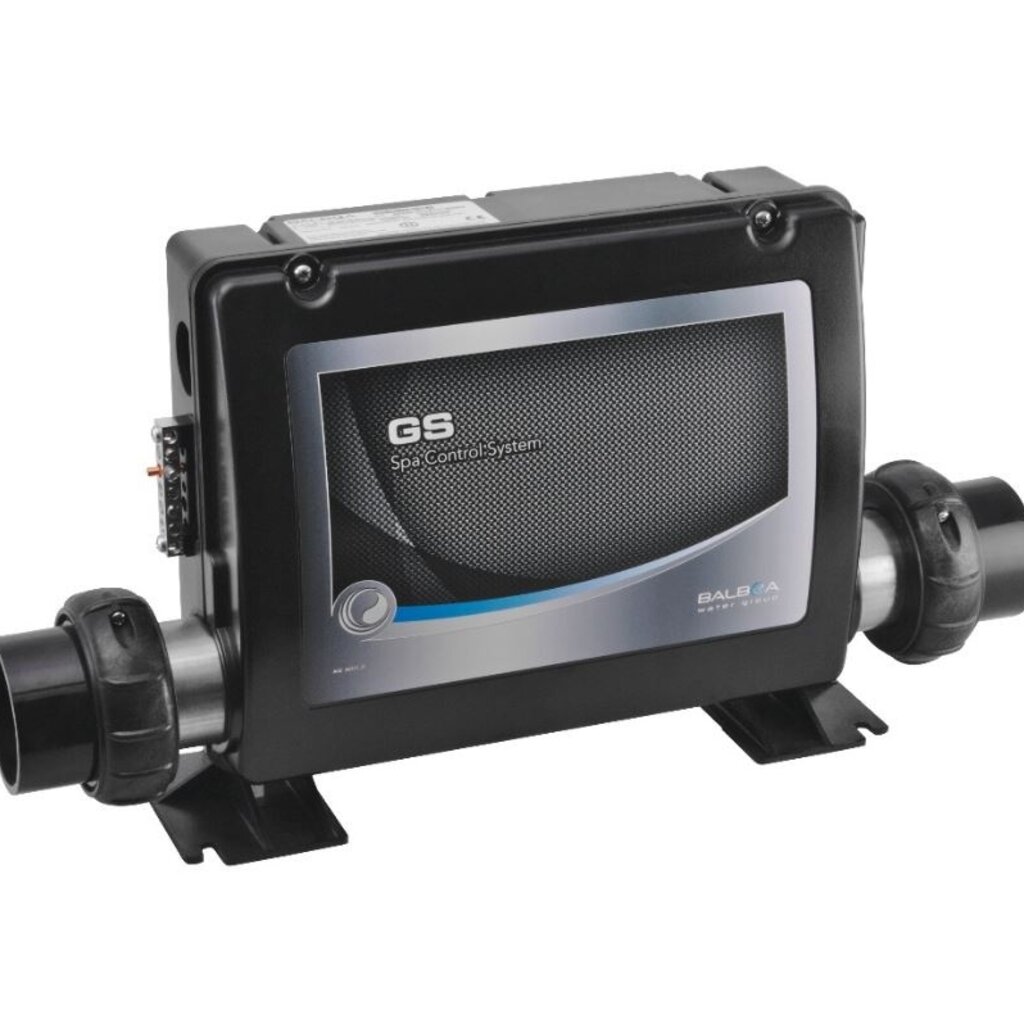

The Balboa GS511SZ control system with integrated 3 kW heater can handle:
- Pump 1 single or two speeds
- Two-speed pump 2
- Circulation pump
- 1 ozonizer
- 1 projector
- 1 audiovisual system
This control box is equipped with M7 technology, which uses temperature probes at the inlet and outlet of the heater to measure water flow, making it much more reliable than systems equipped with a pressure switch or a traditional flow detector.
Use AMP connections to connect any device (pump, ozonator, projector, etc.) to the box.
Dimensions
Height: 268mm
Width: 311 mm (housing without heating), 381 mm (heating without connections)
Depth: 112mm
Heating connection: 2 inches (clamps and gaskets included)
Display
VL600S, VL700S, VL701S
Power supply
The GS511SZ system is supplied pre-configured as single-phase, but can also be configured as two-phase (for distribution of the different devices over the phases).
