Product description

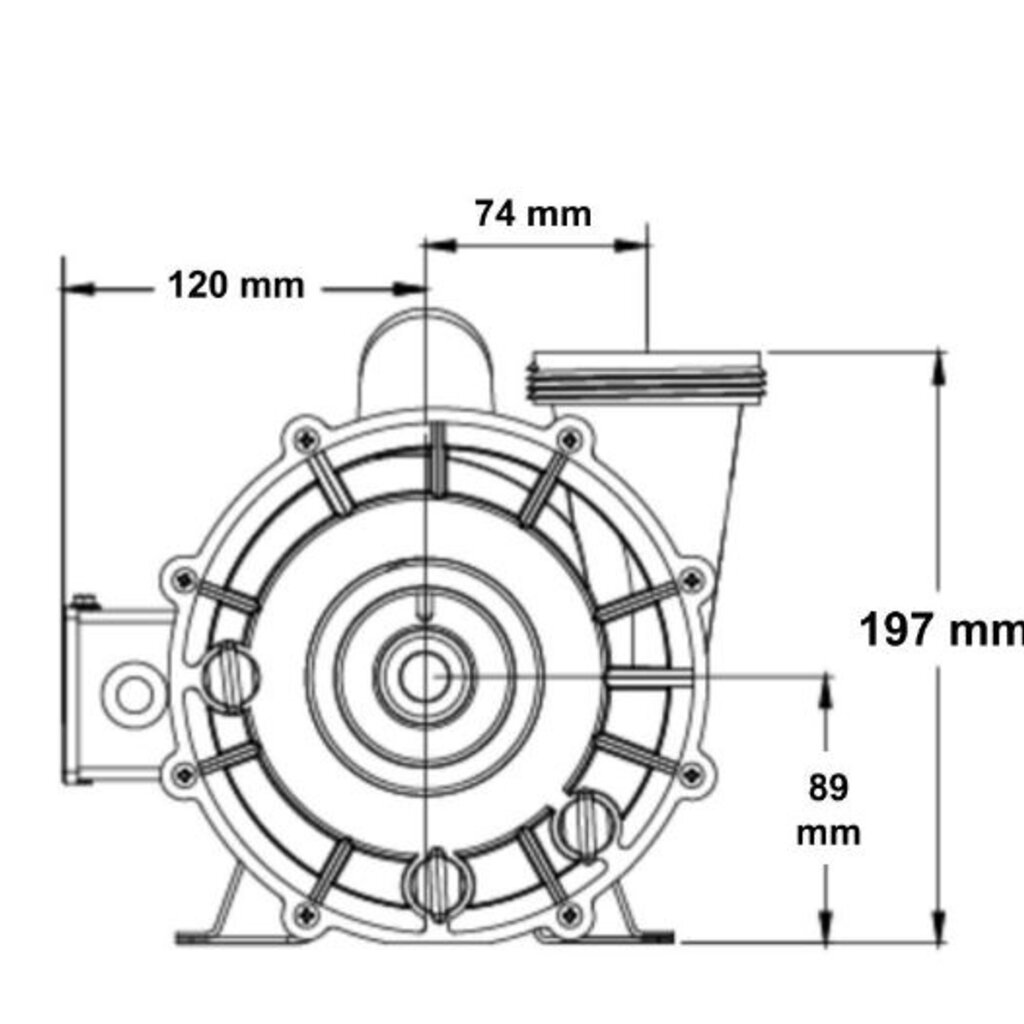

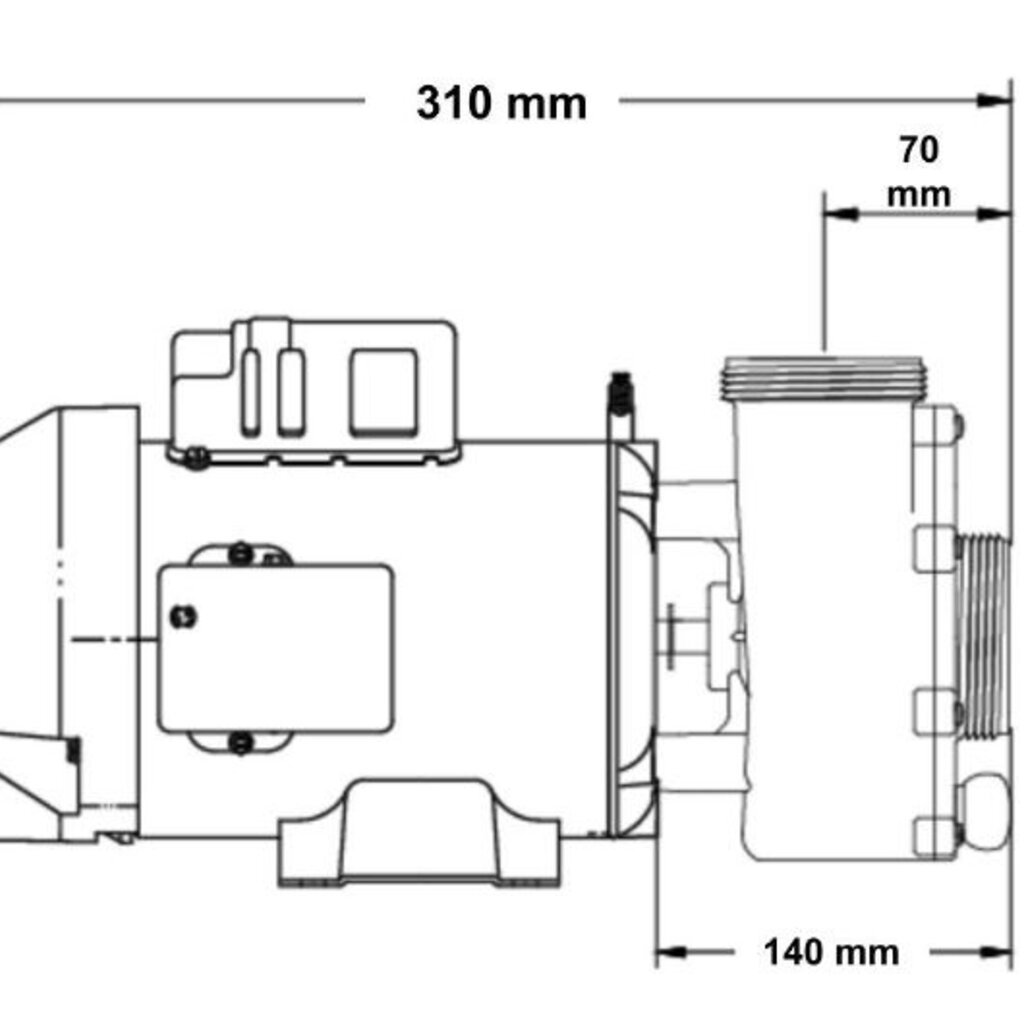

Dimensions
Length: 310 mm
Maximum width: 220 mm
Maximum height: 212 mm
Technical specifications
Power: Between 140 W and 195 W, depending on the version.
The motor plaque says 1/15HP.
Speed: 1425 rpm
Maximum flow rate: 250 litres/minute
Plumbing connections
Thread diameter: 78 mm (2-inch MBT)
We offer unions for 2-inch, 1.5-inch and 63 mm pipe
Cable and plug
The Aqua-Flo CMXP pump is delivered without plug and cable. If you are replacing an existing pump, you may be able to re-use your existing power cord. There is a wiring diagram for connecting it up on the inside of the cover of the water-resistant electrical box.
You can also choose to have it pre-cabled by our team with an AMP plug, a mini J&J plug.
